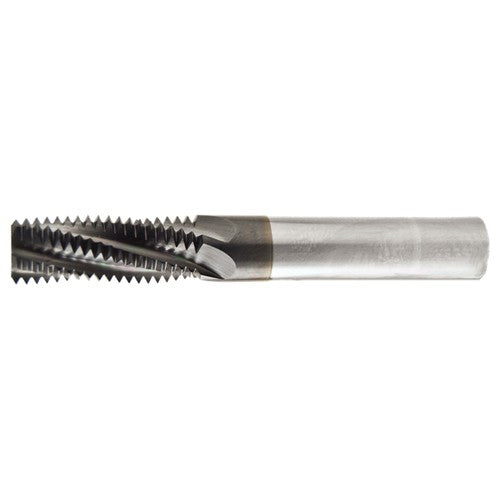

M10x1.25 4 Flute Solid Thread Mill-TiAlN
Item #: BA12B71077
Brand: Bassett
Model #: B71077
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Shank Type | Round |
| Thread Pitch (TP) | 1.25 mm |
| Coating | TiAlN |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 7.94 mm |
| Usable Length (LU) | 19.05 mm |
| Cutting Diameter (DC) | 7.62 mm |
| Series/List # | TMM |
| Overall Length (OAL) | 76.2 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | External |
