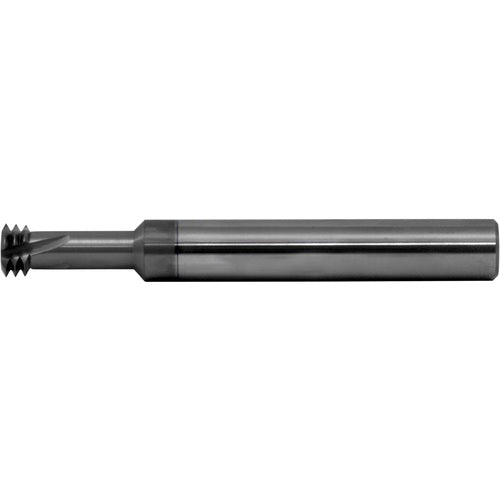

BMTMM3-075L275-0.45ISO AL
Item #: BA12B76163
Brand: Bassett
Model #: B76163
| Product Specifications | |
|---|---|
| Thread Size | M2.5 |
| Shank Type | Round |
| Thread Pitch (TP) | 0.45 mm |
| Coating | AlCrN |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 0.275″ |
| Cutting Diameter (DC) | 0.075″ |
| Series/List # | BMTMM3 |
| Overall Length (OAL) | 2-1/2″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | External |
