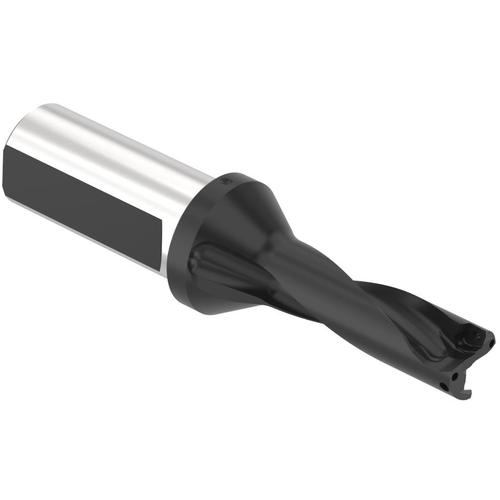

4 TEX 0.718″ DIA 3XD 25M
Item #: BA583050718I25F
Brand: Allied Machine and Eng.
Model #: D3050718I-25FM
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 23/32″ |
| Overall Length (OAL) | 131.5 mm |
| Usable Length (LU) | 54.71 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 3D |
| Cutting Item Count (CICT) | 2 |
| Shank Type | Flange |
| Master Insert Identification (MIID) | 4T-05T203 |
| Tool Type | Indexable Insert Drills |
| Series/List # | 05 |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Flange Diameter (DF) | 32 mm |
| Functional Length (LF) | 77.5 mm |
