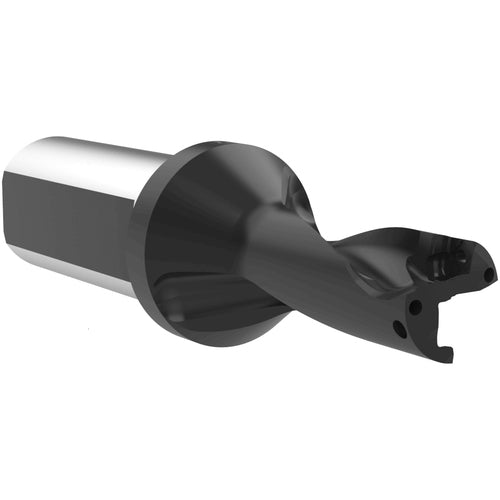

D3144700M-40FM IC Drill
Item #: BA58344700M40FM
Brand: Allied Machine and Eng.
Model #: D3144700M-40FM
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 47 mm |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 141 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Cutting Diameter Minimum (DCN) | 47 mm |
| Shank Type | Flanged |
| Cutting Diameter Maximum (DCX) | 47 mm |
| Protruding Length (LPR) | 173 mm |
| Measurement Type | Metric |
| Functional Length (LF) | 141 mm |
| Length Group | 3D |
| Overall Length (OAL) | 242 mm |
| Master Insert Identification (MIID) | 4T-140408 |
| Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 1.8504″ |
