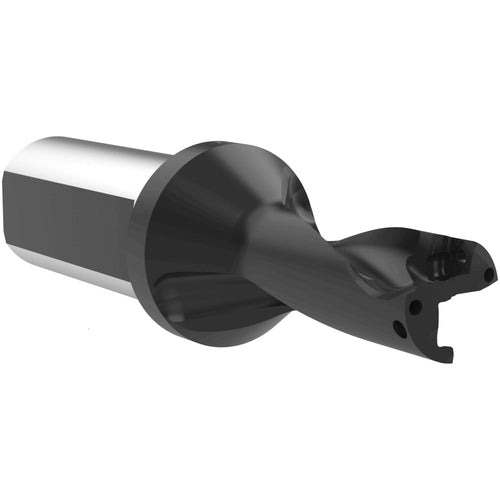

D3072450M-25FM IC Drill
Item #: BA58372450M25FM
Brand: Allied Machine and Eng.
Model #: D3072450M-25FM
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 24.5 mm |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 73.5 mm |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Diameter Minimum (DCN) | 24.5 mm |
| Shank Type | Flanged |
| Cutting Diameter Maximum (DCX) | 24.5 mm |
| Protruding Length (LPR) | 94.4 mm |
| Measurement Type | Metric |
| Functional Length (LF) | 73.5 mm |
| Length Group | 3D |
| Overall Length (OAL) | 148.4 mm |
| Master Insert Identification (MIID) | 4T-070305 |
| Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 0.9646″ |
