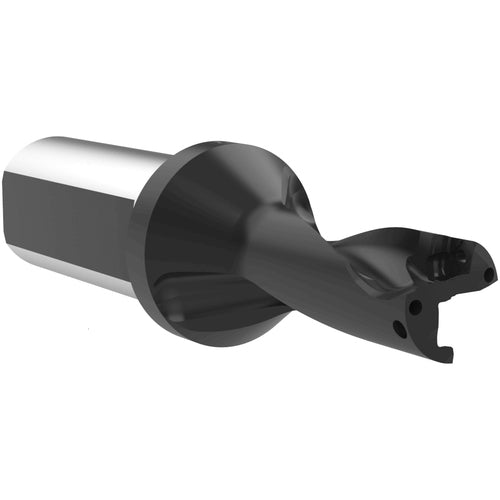

D4072250M-100F IC Drill
Item #: BA58472250M100F
Brand: Allied Machine and Eng.
Model #: D4072250M-100F
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 22.5 mm |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3.543″ |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Diameter Minimum (DCN) | 22.5 mm |
| Shank Type | Flanged |
| Cutting Diameter Maximum (DCX) | 22.5 mm |
| Protruding Length (LPR) | 4.366″ |
| Measurement Type | Metric |
| Functional Length (LF) | 3.543″ |
| Length Group | 4D |
| Overall Length (OAL) | 6.492″ |
| Master Insert Identification (MIID) | 4T-070305 |
| Coolant Supply Property (CSP) | External |
| Decimal Equivalent | 0.8858″ |
