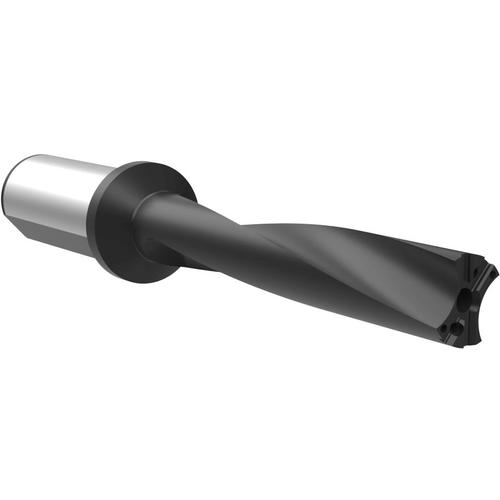

W3305H-40FM HLDR
Item #: BA70W3305H40FM
Brand: Allied Machine and Eng.
Model #: W3305H-40FM
| Product Specifications | |
|---|---|
| Usable Length (LU) | 188.6 mm |
| Functional Length (LF) | 243.4 mm |
| Length Group | 5D |
| Overall Length (OAL) | 313.4 mm |
| Shank Type | Flange |
| Shank Length (LS) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 1.2992″ |
| Flute Type | Helical |
| Cutting Diameter Maximum (DCX) | 1.496″ |
| Series/List # | 33 |
