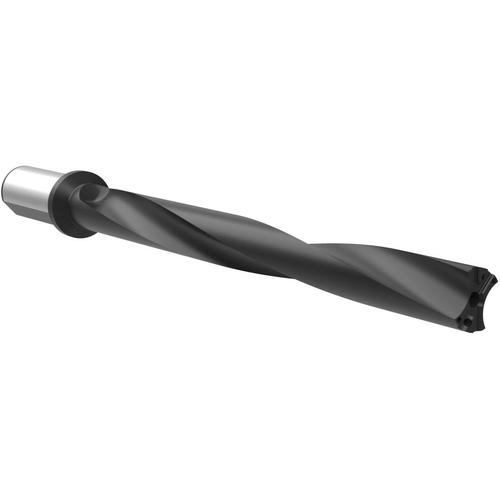

W4410H-40FM HLDR
Item #: BA70W4410H40FM
Brand: Allied Machine and Eng.
Model #: W4410H-40FM
| Product Specifications | |
|---|---|
| Usable Length (LU) | 510 mm |
| Functional Length (LF) | 573.8 mm |
| Length Group | 10D |
| Overall Length (OAL) | 643.8 mm |
| Shank Type | Flange |
| Shank Length (LS) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 44 mm |
| Flute Type | Helical |
| Cutting Diameter Maximum (DCX) | 2.0075″ |
| Series/List # | 44 |
