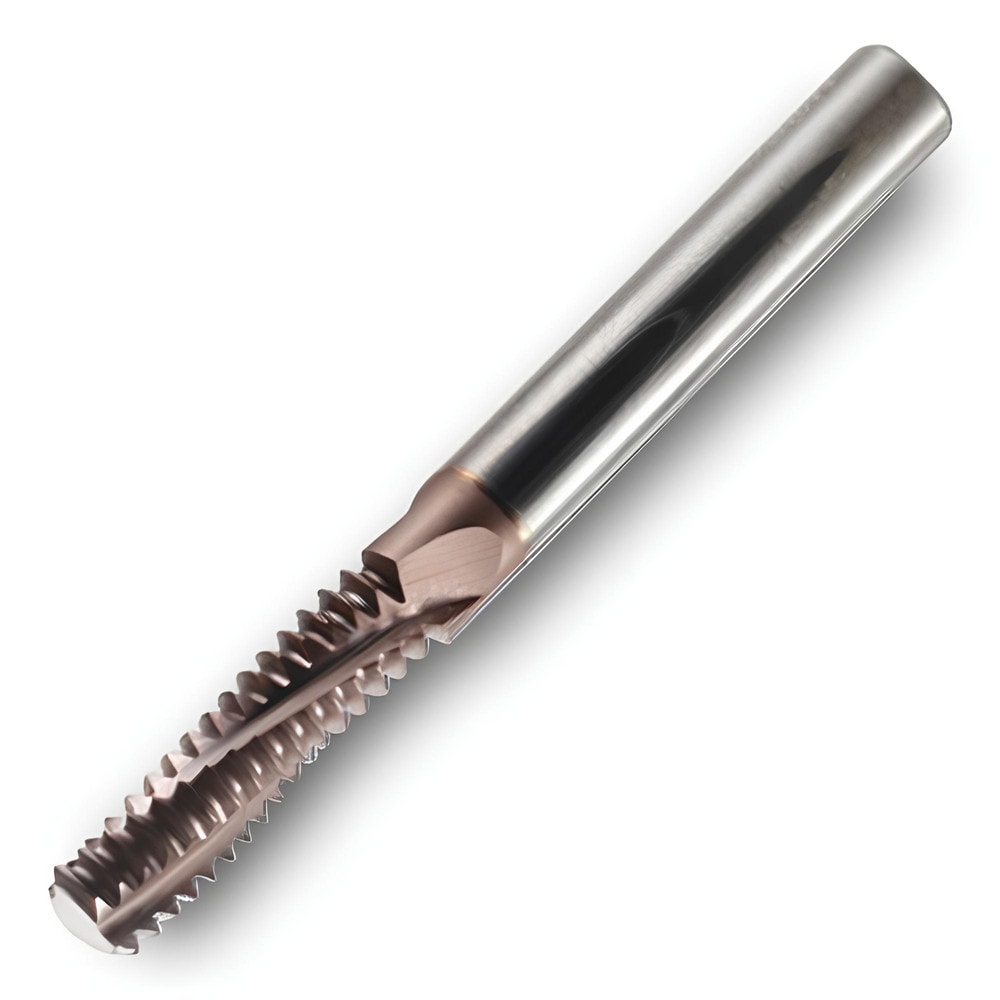

Brand: Ingersoll Cutting Tools / Part #: 5603922
Item #: 51771277
Brand: Ingersoll Cutting Tools
Model #: 5603922
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 7/16 |
| Thread Depth | 0.8200 |
| Thread Depth (Decimal Inch) | 0.8200 |
| Thread Type | UN |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.2760 |
| Minimum Nominal Diameter (Decimal Inch) | 0.4375 |
| Shank Length (Decimal Inch) | 1.6800 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Standard | UN |
| Thread Mill Type | Mini |
| Flute Direction | Right Hand |
| Material Grade | IN2005 |
| Series | MTEC-UN |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8200 |
| Thread Length (Decimal Inch) | 0.8200 |
| Teeth Per Inch | 14 |
