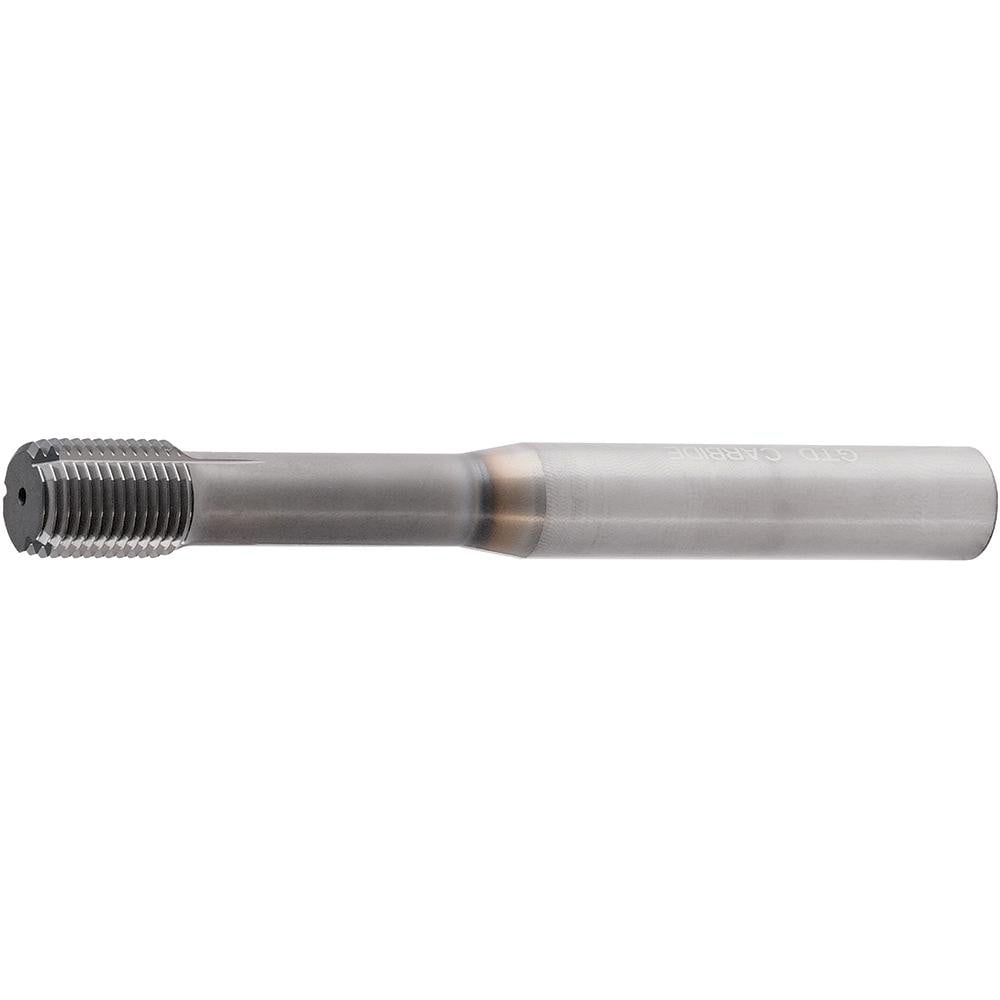

Brand: Widia / Part #: 5551171
Item #: 98987589
Brand: Widia
Model #: 5551171
Product Specifications
| Thread Size (mm) | M10x1.5 |
| Overall Length (mm) | 90.0000 |
| Chamfer | Bottoming |
| Coating/Finish | C; CrC; TiN |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 12.00 |
| Thread Depth (mm) | 40.00 |
| Thread Depth | 40.0000 |
| Shank Diameter (mm) | 10.0000 |
| Neck Length | 28.00 |
| Material Application | Non-Ferrous Metals |
| Application | Metal |
| Series | GX49 |
| Tap Type | Blind |
| Tapping Depth (mm) | 40.00 |
| Shank Length (mm) | 44.300 |
| Threads per Inch | 17 |
| Class Of Fit | 6HX |
| Coolant Through | Yes |
