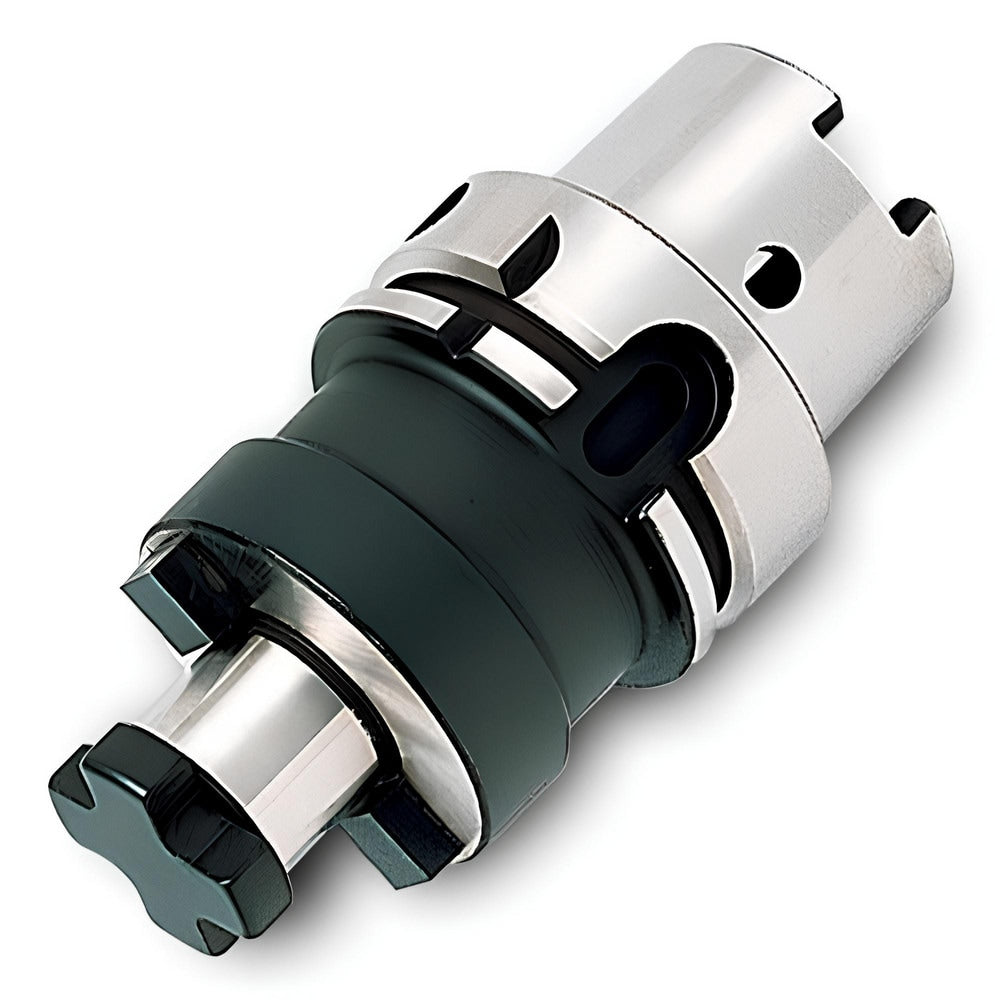

Brand: Ingersoll Cutting Tools / Part #: 4540332
Item #: 43539196
Brand: Ingersoll Cutting Tools
Model #: 4540332
Product Specifications
| Shank Type | Taper |
| Modular Connection Size | HSK A63 |
| Overall Length (Decimal Inch) | 3.0098 |
| Maximum RPM | 15000.000 |
| Taper Size | HSK A63 |
| Pilot Diameter (Decimal Inch) | 1.0000 |
| Pilot Diameter (Inch) | 1 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.0860 |
| Flange To Nose End | 1.7500 in |
| Through Coolant | Yes |
| Shank Diameter (Decimal Inch) | 0.0000 |
| Coolant Type | Through-Spindle |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
