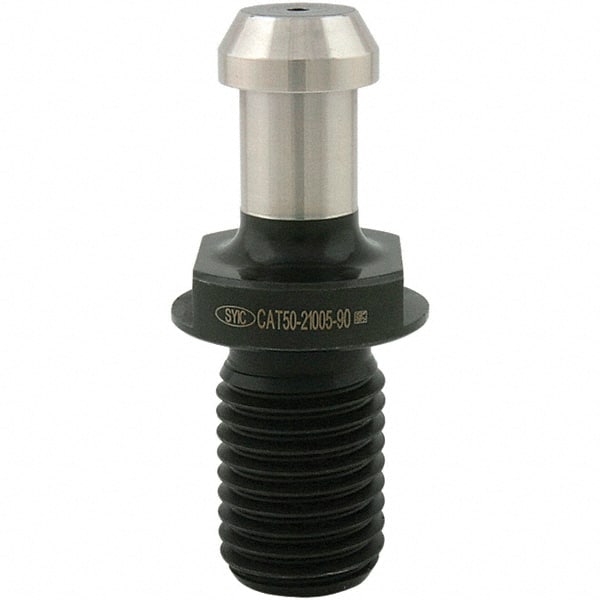

Techniks - Retention Knobs Type: Standard Taper Size: CAT50
Item #: 59849646
Brand: Techniks
Model #: 21005-90
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
Product Specifications
Retention Knobs; Type: Standard ; Taper Size: CAT50 ; Thread Size: 1-8 ; Angle Radius: 90.00 ; Knob Diameter (Decimal Inch): 0.9060 ; Through Coolant: No
| Type | Standard |
| Taper Size | CAT50 |
| Thread Size | 1-8 |
| Angle Radius | 90.00 |
| Knob Diameter (Decimal Inch) | 0.9060 |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 3.3460 |
