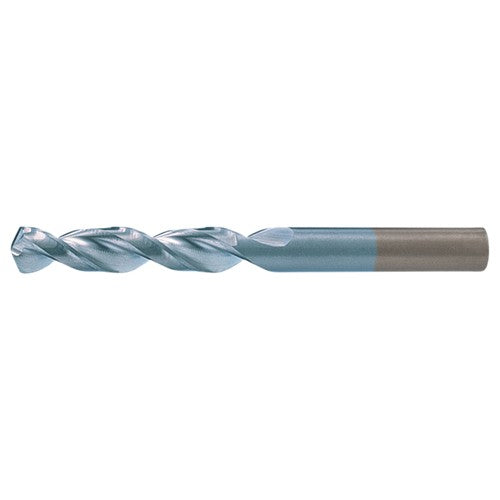

5/64 RHS / RHC HSS-CO 8% (M42) 135 Degree Split Point Q-Cobalt Wide Land Parabolic Drill - TiCN
Item #: CD70C15251
Brand: Cleveland Twist Drill
Model #: C15251
| Product Specifications | |
|---|---|
| Measurement Type | Inch |
| Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) | 5/64″ |
| Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/64″ |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.0781″ |
| Overall Length (OAL) | 1-11/16″ |
| Angle | 135 Degrees |
| Shank Type | Straight |
| Shape | Screw Machine |
| Point Shape | Split |
| Coating | TiCN |
| Tool Type | Drill |
| Cutting Edge Material | HSSCo |
| Connection Diameter Machine Side (DCONMS) | 5/64″ |
| Flute Length | 11/16″ |
| Series/List # | 2175-TC |
