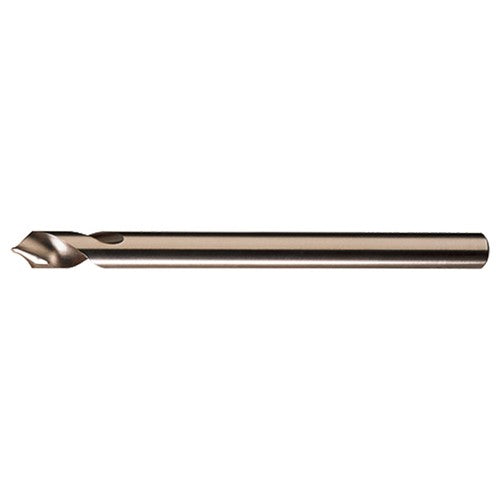

1/4-E × 4″ OAL 90 Degree HSSCoPM Radial NC Spotting Drills Gold-Black Oxide
Item #: CD70C26181
Brand: Cleveland
Model #: C26181
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | E |
| Cutting Edge Material | HSSCo |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ |
| Size | 1/4-E |
| Decimal Equivalent | 0.25″ |
| Point Shape | Radial |
| Point Angle (SIG) | 90 Degrees |
| Measurement Type | Inch | Letter |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Tool Type | Spotting Drill |
| Overall Length (OAL) | 4″ |
| Shank Length (LS) | 3″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Series/List # | 2646 |
| Shank Type | Round |
| Length Chip Flute (LCF) | 1″ |
| Coating | Straw |
