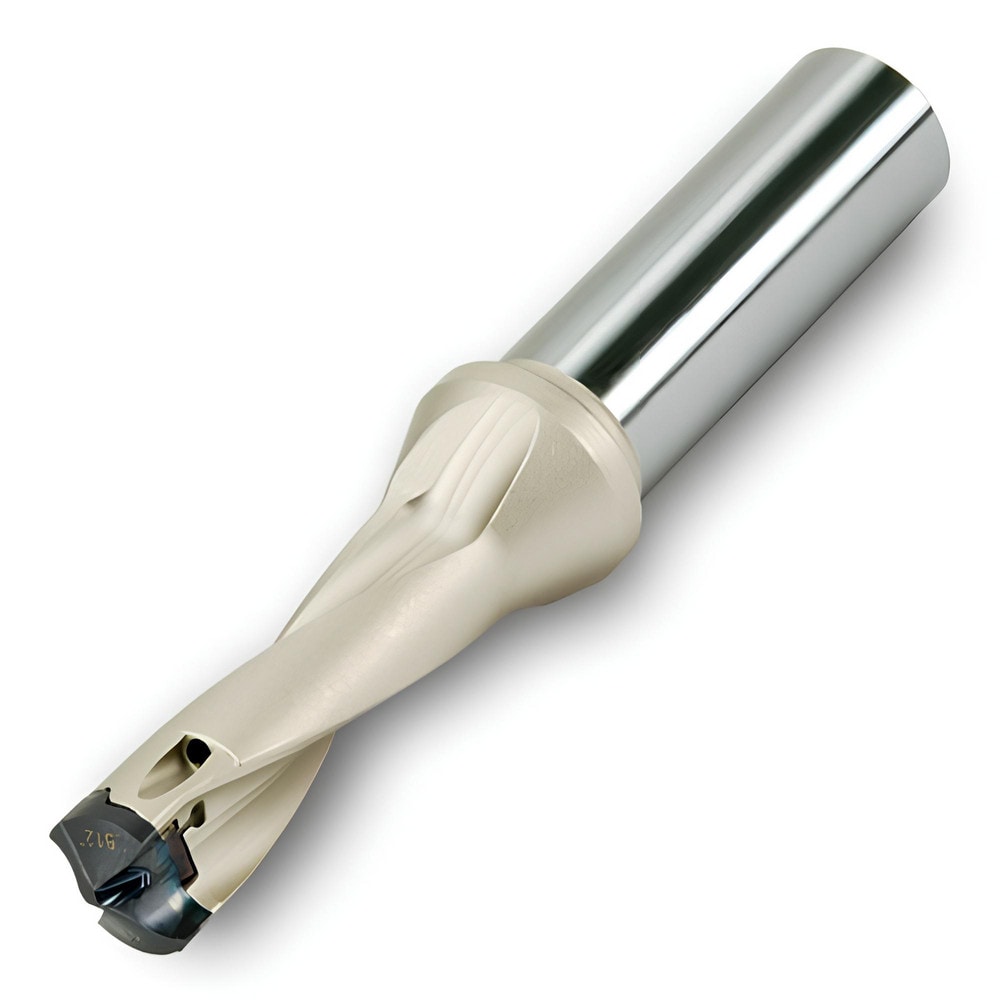

Brand: Ingersoll Cutting Tools / Part #: 3209131
Item #: 54150149
Brand: Ingersoll Cutting Tools
Model #: 3209131
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.3543 |
| Maximum Drill Diameter (Decimal Inch) | 0.3701 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.0600 |
| Shank Type | Cylindrical |
| Insert Style | YAB |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Seat Size | 9 |
| Tool Material | Steel |
| Compatible Insert Style | YAB |
| Compatible Insert Size Code | 0750; 0770; 0760; 0790; 0780 |
| Overall Length (Decimal Inch) | 3.3100 |
| Series | Y |
| Toolholder Style | Y |
| Shank Length (Decimal Inch) | 1.7700 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
