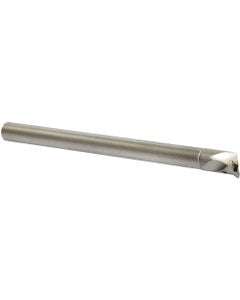

A20RSVPBL1126AE Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC13469
Brand: Kyocera Precision Tools
Model #: THC13469
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 200 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 200 mm |
| Rake Angle Axial (GAMP) | -5 Degrees |
| Head Length (LH) | 41 mm |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 19 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 159 mm |
| Body Material | Steel |
| Functional Width (WF) | 15.5 mm |
| Style | A...SVPB-AE |
| Master Insert Identification (MIID) | | VBMT22 | VBGT22 | VBET22 | VBGW22 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 26 mm |
| Weight of Item (WT) | 1.036 |
