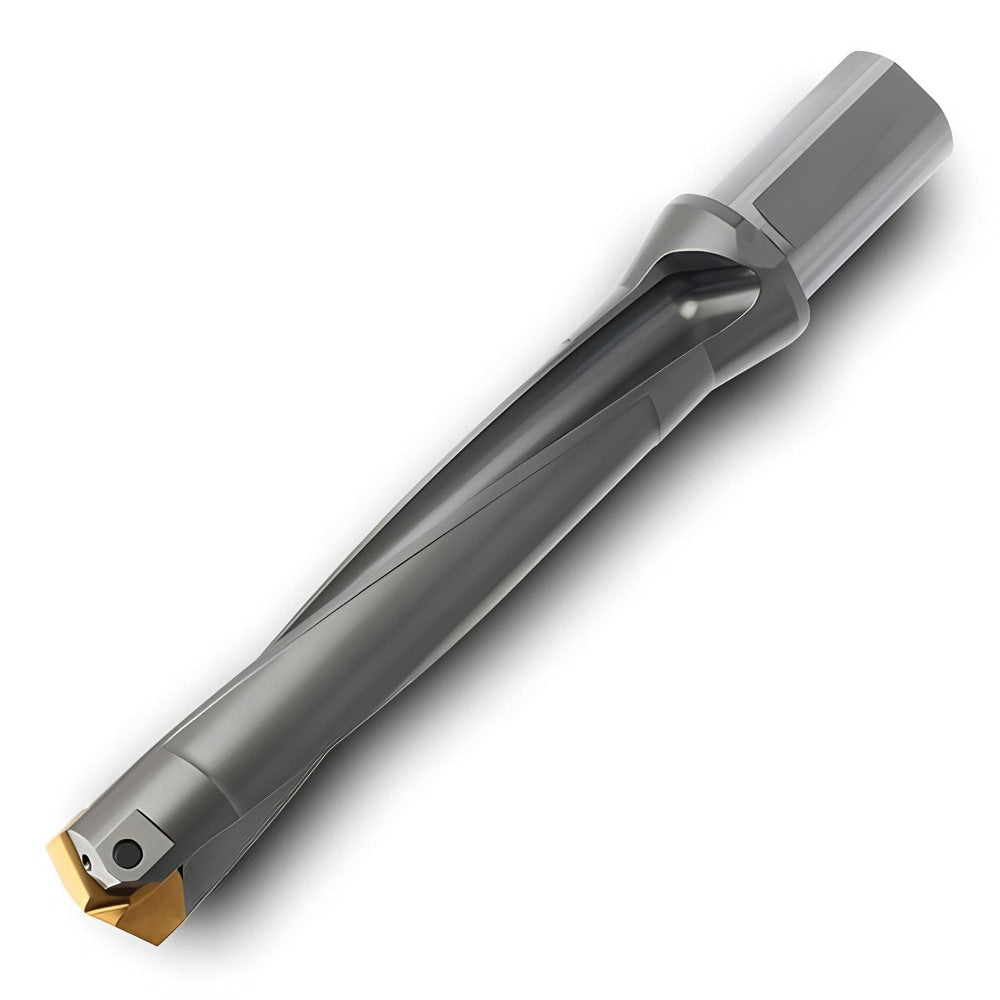

Brand: Ingersoll Cutting Tools / Part #: 6133583
Item #: 98810914
Brand: Ingersoll Cutting Tools
Model #: 6133583
Product Specifications
| Minimum Drill Diameter (mm) | 33.00 |
| Maximum Drill Diameter (mm) | 33.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 170.25 |
| Shank Type | Flatted |
| Insert Style | LPA |
| Insert Seat Size | 33 |
| Shank Diameter (mm) | 40.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Compatible Insert Size Code | 3300; 3330; 3350 |
| Overall Length (mm) | 267.6300 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (mm) | 197.63 |
| Body Length | 197.630 |
| Shank Length (mm) | 70.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
