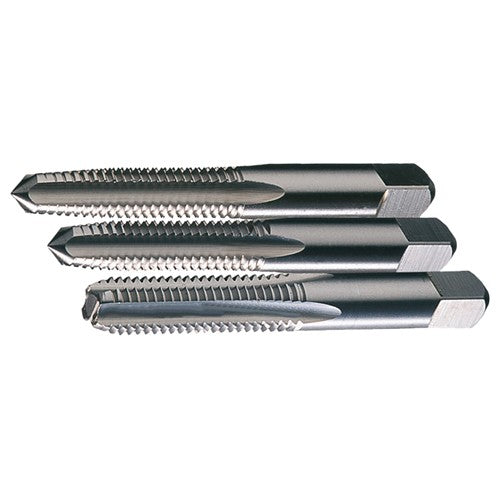

#12-24 UNC 4 Flute H3 HSS Standard Taper, Plug, and Bottoming Hand Tap Set- Bright
Item #: CD73C54388
Brand: Cleveland
Model #: C54388
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #12 |
| Overall Length (OAL) | 2.38″ |
| Thread Standard | NC |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Threads per Inch (TPI) | 24 |
| Flute Count (NOF) | 4 |
| Flute Type | Straight |
| Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | H3 |
| Quantity | 3 |
| Style | Taper|Plug|Bottoming |
| Application | General Purpose |
| Tool Type | Hand Tap |
| Measurement Type | Inch |
| Shank Type | Round w/ Drive Square |
| Series/List # | 1004 |
| Flute Length | 15/16″ |
| Thread Cutting Part Length (THL) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Size | #12 - 24 |
| Coating | Bright |
