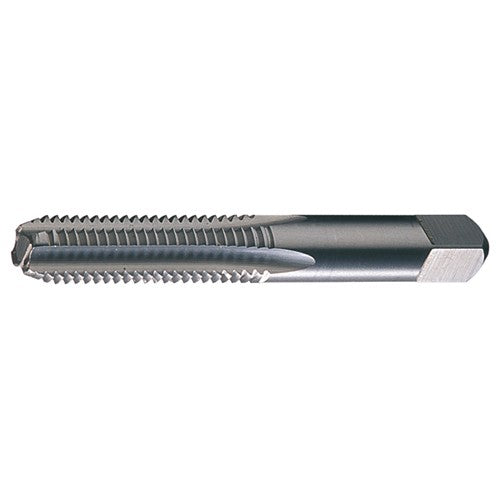

1-1/8-7 UNC 4 Flute H4 HSS Standard Bottoming Chamfer General Purpose Hand Tap- Bright
Item #: CD73C54967
Brand: Cleveland
Model #: C54967
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-1/8″ |
| Chamfer | Bottoming |
| Threads per Inch (TPI) | 7 |
| Coating | Bright |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 5-7/16″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 2-9/16″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.896″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Application | General Purpose |
| Length Group | 2D |
| Applicable Material | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Series/List # | 1003 |
| Thread Tolerance Class (TCTR) | H4 | 2B |
| Thread Size | 1-1/8″ - 7 |
| Tool Type | Hand Tap |
