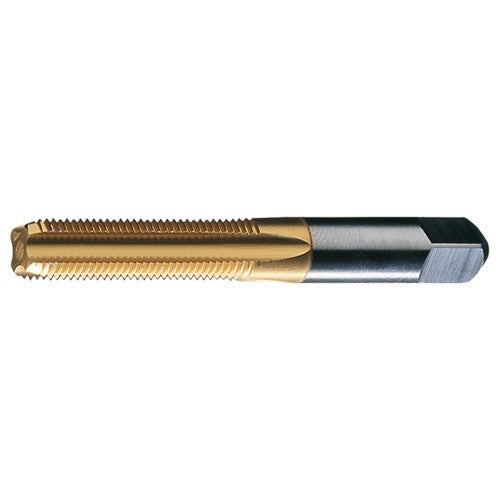

7/8-9 UNC 4 Flute H4 HSS Standard Bottoming Chamfer General Purpose Hand Tap- TiN
Item #: CD73C55248
Brand: Cleveland
Model #: C55248
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/8″ |
| Chamfer | Bottoming |
| Threads per Inch (TPI) | 9 |
| Coating | TiN |
| Thread Standard | NC |
| Flute Type | Straight |
| Overall Length (OAL) | 4-11/16″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 2-7/32″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Application | General Purpose |
| Length Group | 2D |
| Applicable Material | Steel | Stainless Steel | Cast Iron |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Series/List # | 1003-TN |
| Thread Tolerance Class (TCTR) | H4 | 2B |
| Thread Size | 7/8″ - 9 |
| Tool Type | Hand Tap |
