Brand: Widia / Part #: 4170170
Item #: 94497674
Brand: Widia
Model #: 4170170
Product Specifications
| Insert Style | WMTR |
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | WU10PT |

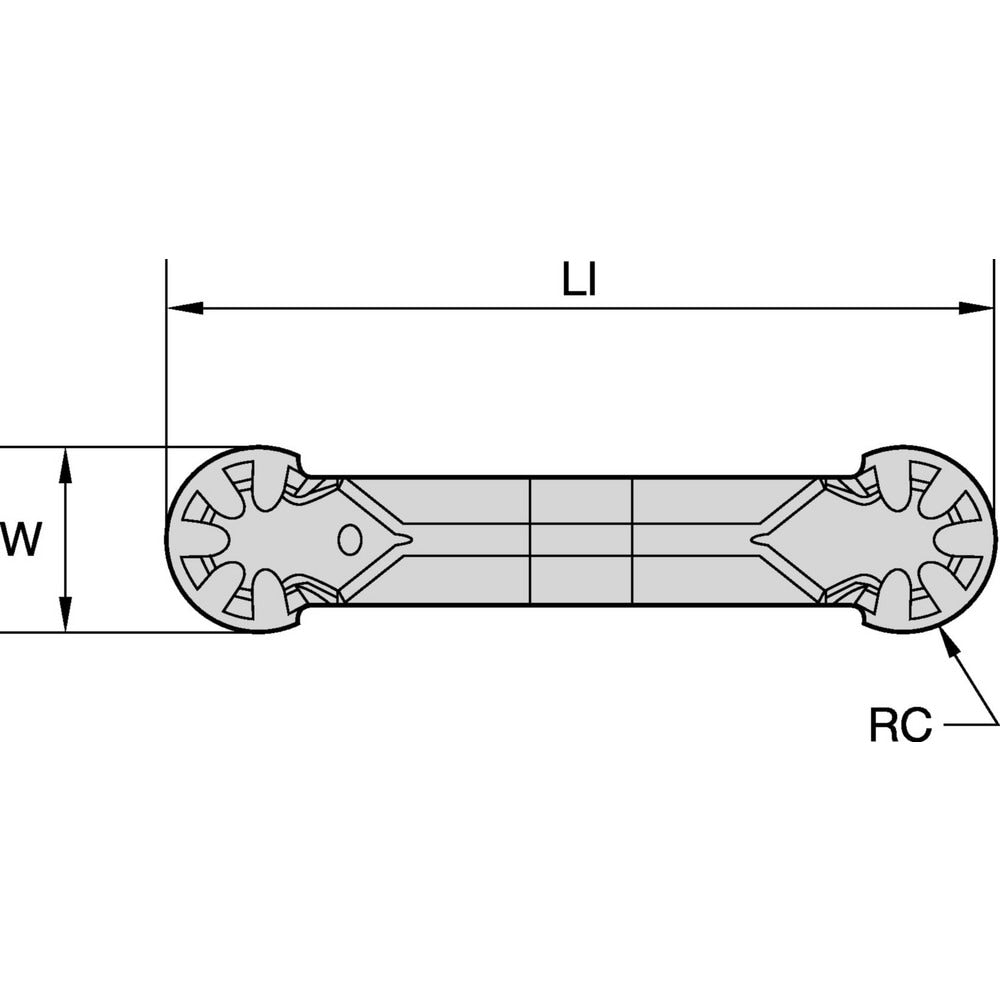

| Cutting Width (mm) | 3.000 |
| Maximum Depth of Cut (Decimal Inch) | 0.9409 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0591 |
| Lead Angle | 0.000 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Series | WMT |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 1 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; H; K; M; N |
| Ansi Code | WMTR300M3PPC |
| Iso Code | WMTR300M3PPC |
| Relief Angle | 6 |
| Chip Breaker | PC |
| Coating Classification | PVD |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1180 |
| Included Angle Degree | 90 |
| Coating/Finish | AlTiN |
| Number Of Cutting Edges | 2 |
