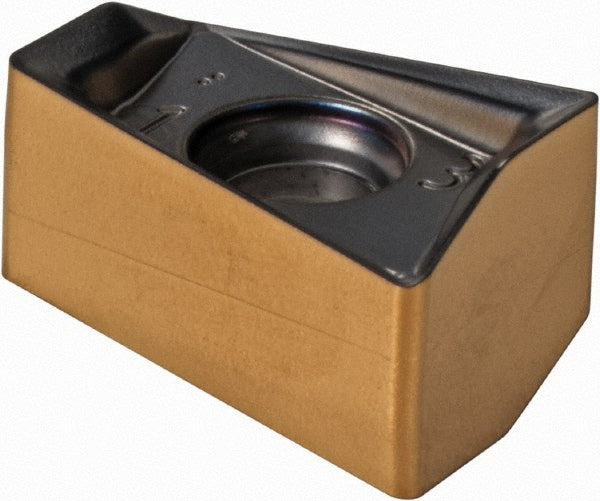

Brand: Iscar / Part #: 5606098
Item #: 41209925
Brand: Iscar
Model #: 5606098
Product Specifications
| Insert Style | H490 ANKX |
| Insert Size Code | 170608 |
| Insert Size | 170608 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC810 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Relief Angle | 0.00 |
| Series | HELIDO |
| Coating Process | PVD |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | H490 ANKX 170608PNTR |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | H490 ANKX 170608PNTR |
| Chip Breaker | PNTR |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4410 |
| Thickness (Decimal Inch - 4 Decimals) | 0.4090 |
| Length (Decimal Inch - 4 Decimals) | 0.6570 |
