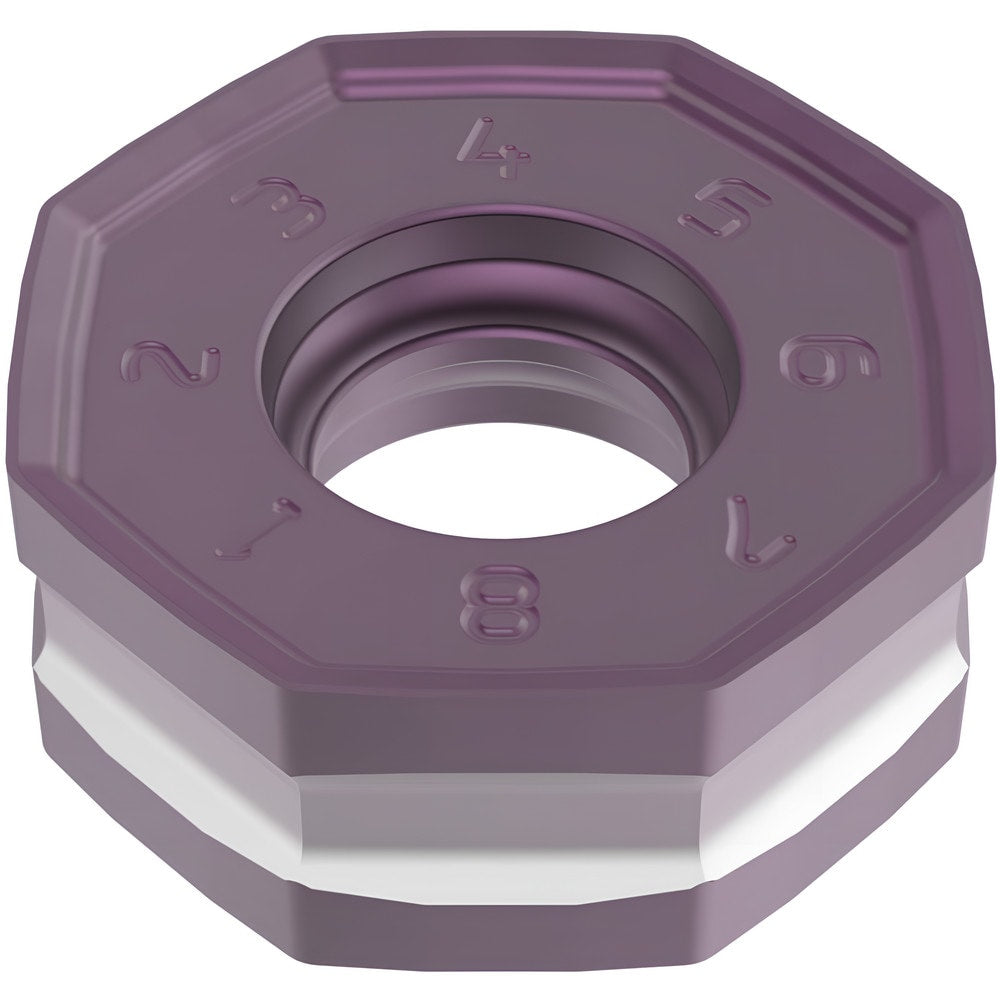

Brand: Seco / Part #: 10159516
Item #: 67253138
Brand: Seco
Model #: 10159516
Product Specifications
| Insert Style | ONMU |
| Insert Size Code | 05 |
| Insert Size | 05 |
| Insert Material | Carbide |
| Manufacturer Grade | MK2050 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | ONMU05 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Number Of Cutting Edges | 16 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1260 |
| Insert Shape | Octagon |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | ONMU050406ANTN-ME14 |
| Iso Code | ONMU050406ANTN-ME14 |
| Rake Angle | 25.000 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | ONMU050406ANTN-ME14 |
| Cutter Series Compatibility | R217/220.48-05 |
| Chip Breaker | ME14 |
| Cutting Direction | Neutral |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiSiN; TiAlN |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1772 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
