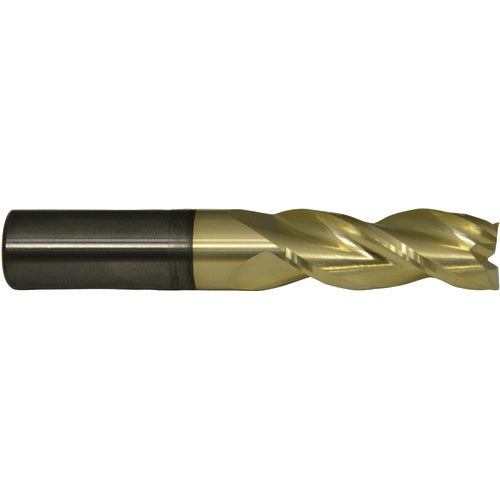

1/2X5/8X2 1/2 3F AL-ZRN
Item #: CE60C72358
Brand: Cleveland Twist Drill
Model #: C72358
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Application | Heavy duty for aluminum materials. |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | None |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Tool Type | End Mill |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Stub |
| Cutting Edge Material | Carbide |
| Style | Finisher |
| Coating | ZrN |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees |
| Series/List # | CEM-AM3-ZN |
| Shank Type | Plain |
| Shank Size (SS) | 1/2″ |
| End Shape | Square |
| Shank Length (LS) | 1.875″ |
| Usable Length (LU) | 5/8″ |
| Corner Radius (RE) / Chamfer Width (CHW) | None |
| Applicable Material | Aluminum / Non-Ferrous Materials |
