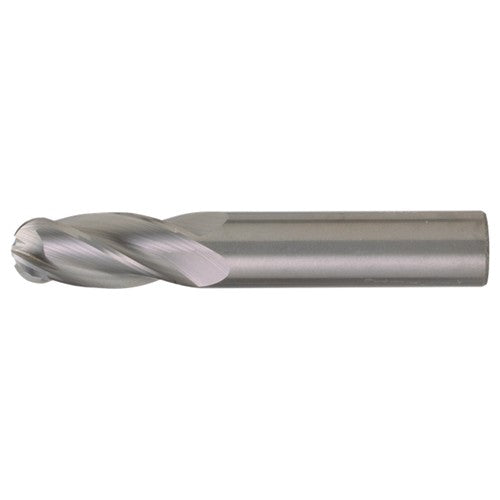

1″ Dia. × 1″ Shank × 2-1/4″ DOC × 5″ OAL, Carbide TiAlN, Spiral , 4 Flute, CW Helix, Round, Ballnose End Mill
Item #: CE60C83578
Brand: Cleveland Twist Drill
Model #: C83578
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Tool Type | End Mill |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Length Group | Long |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 5″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 1″ |
| Coating | TiAlN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | CEM-SE-4B-TA |
| Flute Helix Angle (FHA) | CW |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
| Single / Double End | Single End |
