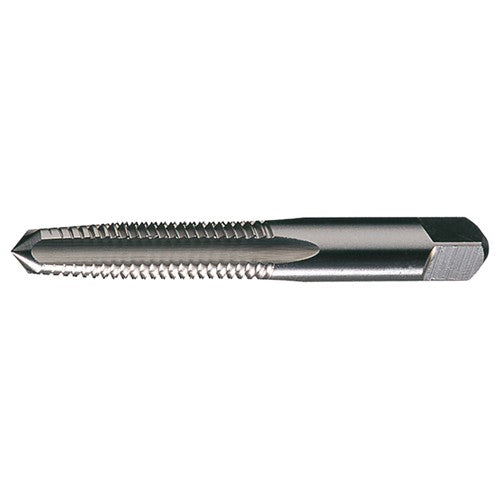

3/8-16 UNC 4 Flute HSS Standard Taper Chamfer Hand Tap- Bright
Item #: CF71C69123
Brand: Cle-Force
Model #: C69123
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Coating | Bright |
| Threads per Inch (TPI) | 16 |
| Flute Type | Straight |
| Thread Standard | NC |
| End Shape | Square |
| Overall Length (OAL) | 2-15/16″ |
| Style | Taper |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Series/List # | 1690 |
| Tool Type | Hand Tap |
| Thread Size | 3/8″ - 16 |
| Chamfer | Taper |
