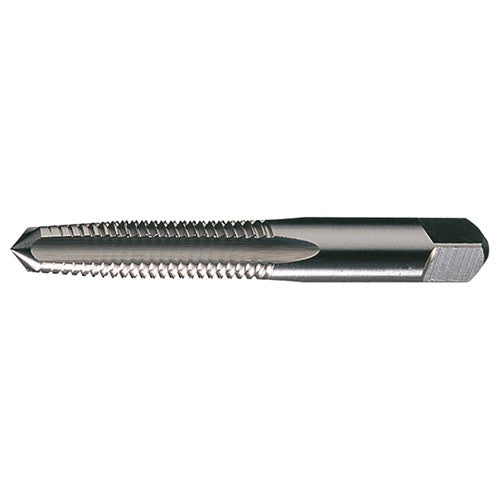

7/8-14 UNF Flute Carbon Steel Standard Bottoming Chamfer Hand Tap- Bright
Item #: CF71C69475
Brand: Cle-Force
Model #: C69475
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/8″ |
| Coating | Bright |
| Threads per Inch (TPI) | 14 |
| Flute Type | Straight |
| Thread Standard | NF |
| End Shape | Square |
| Overall Length (OAL) | 4-11/16″ |
| Style | Bottoming |
| Thread Cutting Part Length (THL) | 2-7/32″ |
| Shank Type | Round w/ Drive Square |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Length Group | 1.5D |
| Cutting Edge Material | Carbon Steel |
| Measurement Type | Inch |
| Tool Type | Hand Tap |
| Series/List # | 1698 |
| Chamfer | Bottoming |
| Thread Size | 7/8″ - 14 |
