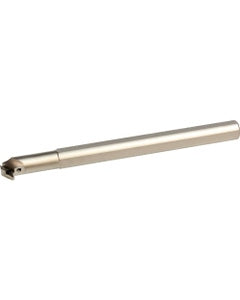

A20RSVZBR1125AE Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC13556
Brand: Kyocera Precision Tools
Model #: THC13556
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 200 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 200 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 40.5 mm |
| Rake Angle Radial (GAMF) | -7 Degrees |
| Shank Height (H) | 19 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 159.5 mm |
| Body Material | Steel |
| Functional Width (WF) | 18 mm |
| Style | A...SVZB-AE |
| Master Insert Identification (MIID) | | VBMT22 | VBGT22 | VBET22 | VBGW22 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 25 mm |
| Weight of Item (WT) | 1.0584 |
