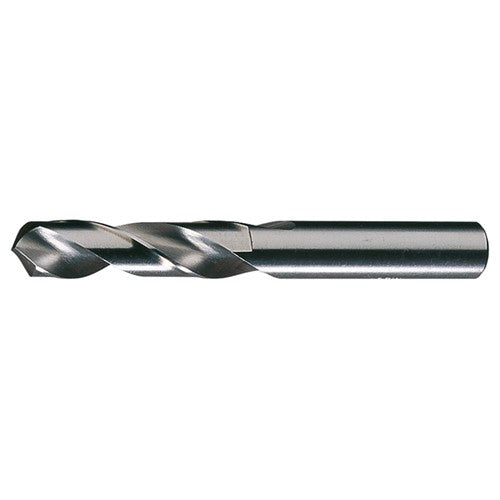

39/64 RHS / RHC HSS 118 Degree Radial Point General Purpose Screw Machine Drill - Steam Oxide
Item #: CH1648539
Brand: Chicago-Latrobe
Model #: 48539
| Product Specifications | |
|---|---|
| Measurement Type | Inch |
| Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) | 39/64″ |
| Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 39/64″ |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.6094″ |
| Overall Length (OAL) | 4-1/4″ |
| Angle | 118 Degrees |
| Shank Type | Straight |
| Shape | Screw Machine |
| Point Shape | Radial |
| Coating | Steam Oxide |
| Tool Type | Drill |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 39/64″ |
| Flute Length | 2-3/4″ |
| Series/List # | 157 |
