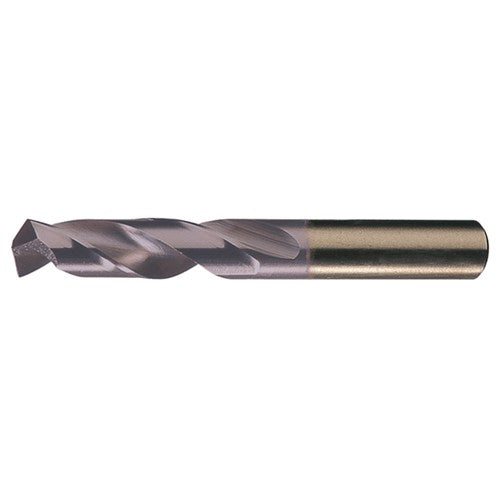

15/32 RHS / RHC HSS-CO 8% (M42) 135 Degree Split Point Heavy Duty Cobalt Screw Machine Drill - TiAlN
Item #: CH1752830
Brand: Chicago-Latrobe
Model #: 52830
| Product Specifications | |
|---|---|
| Measurement Type | Inch |
| Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) | 15/32″ |
| Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/32″ |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.4688″ |
| Overall Length (OAL) | 3-5/8″ |
| Angle | 135 Degrees |
| Shank Type | Straight |
| Shape | Screw Machine |
| Point Shape | Split |
| Coating | TiAlN |
| Tool Type | Drill |
| Cutting Edge Material | HSSCo |
| Connection Diameter Machine Side (DCONMS) | 15/32″ |
| Flute Length | 2-1/8″ |
| Series/List # | 559-TA |
