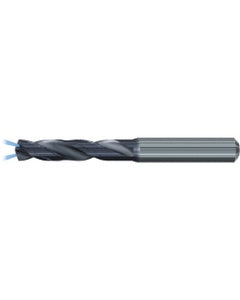

3 mm Dia. × 6 mm Shank Dia. × 62 mm OAL × 20 mm LCF ; 140 Degrees ; 3xD ; 2 FL ; TiAlN ; Series TA209744 Solid Carbide Drills
Item #: ER45A2097440300
Brand: EMUGE-FRANKEN
Model #: TA209744.0300
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm |
| Tool Type | Solid Carbide Drill |
| Length Group | 3xD |
| Point Shape | Self Centering |
| Coating | TiAlN |
| Series/List # | TA209744 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Usable Length (LU) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Length Chip Flute (LCF) | 20 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 62 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 20 mm |
| Feature | DOUBLE-MARGIN DRILL |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
