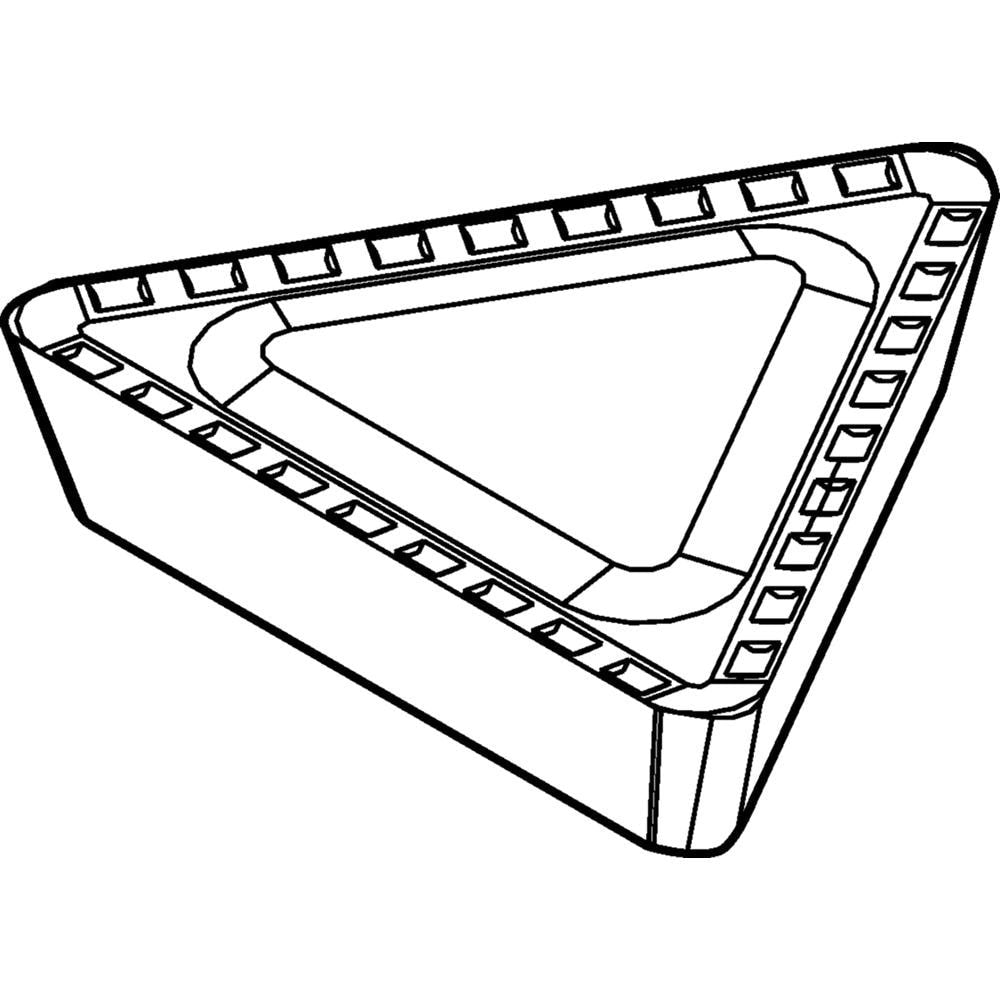

Brand: Widia / Part #: 6901196
Item #: 94460763
Brand: Widia
Model #: 6901196
Product Specifications
| Insert Style | TPKR |
| Insert Size Code | 1603 |
| Insert Size | 32 |
| Insert Material | Carbide |
| Manufacturer Grade | WP35CM |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.000 |
| Series | TPKR |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6495 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | TPKR32PDRMS |
| Iso Code | TPKR1603PDRMS |
| Manufacturers Catalog Number | TPKR32PDRMS |
| Chip Breaker | MS |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Triangle |
| Insert Holding Method | Clamp |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.6495 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6495 |
