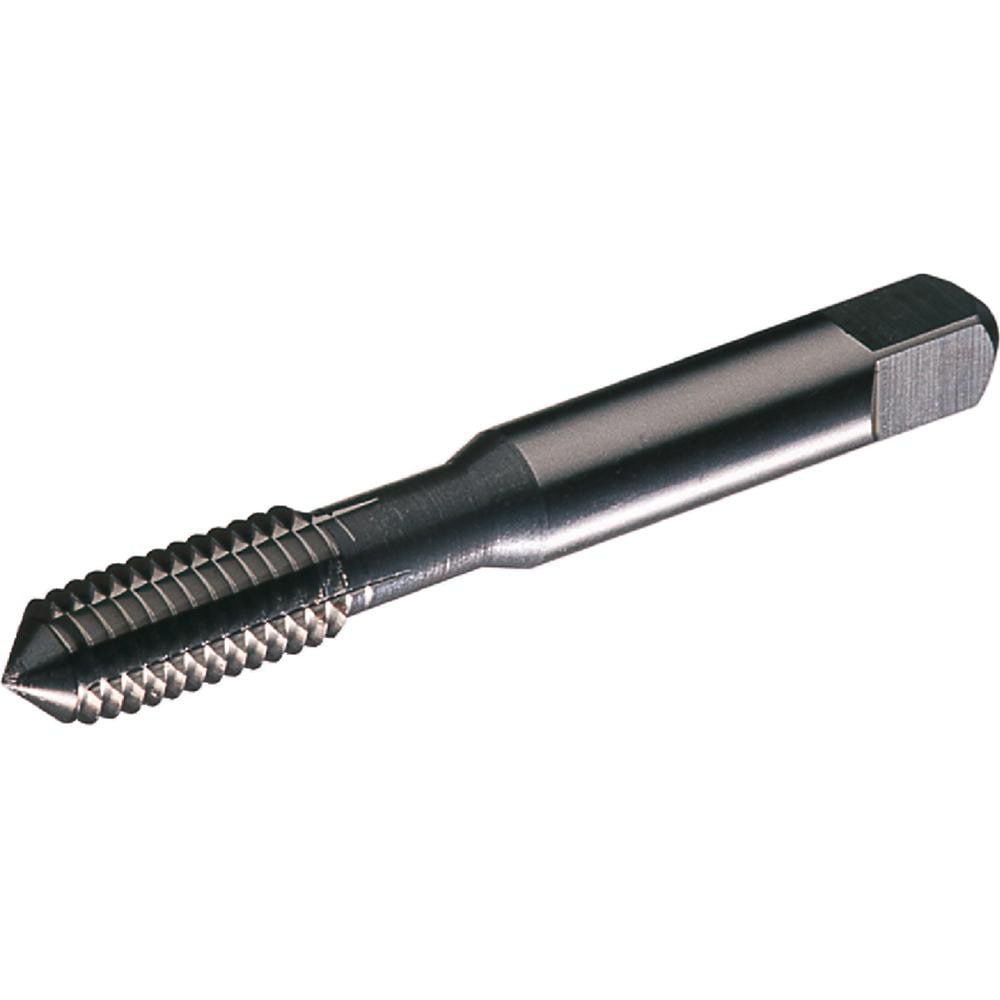

Brand: Widia / Part #: 2747554
Item #: 99327389
Brand: Widia
Model #: 2747554
Product Specifications
| Thread Size (Inch) | 1/4-28 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chamfer | Bottoming |
| Coating/Finish | Uncoated |
| Thread Limit | H4 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.6250 |
| Thread Depth | 1.0000 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Neck Length (Decimal Inch) | 0.3750 |
| Square Length (Decimal Inch) | 0.3125 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 5502 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 1.5000 |
| Square Size (Decimal Inch) | 0.1910 |
| Threads per Inch | 28 |
| Class Of Fit | 3B |
| Coolant Through | No |
