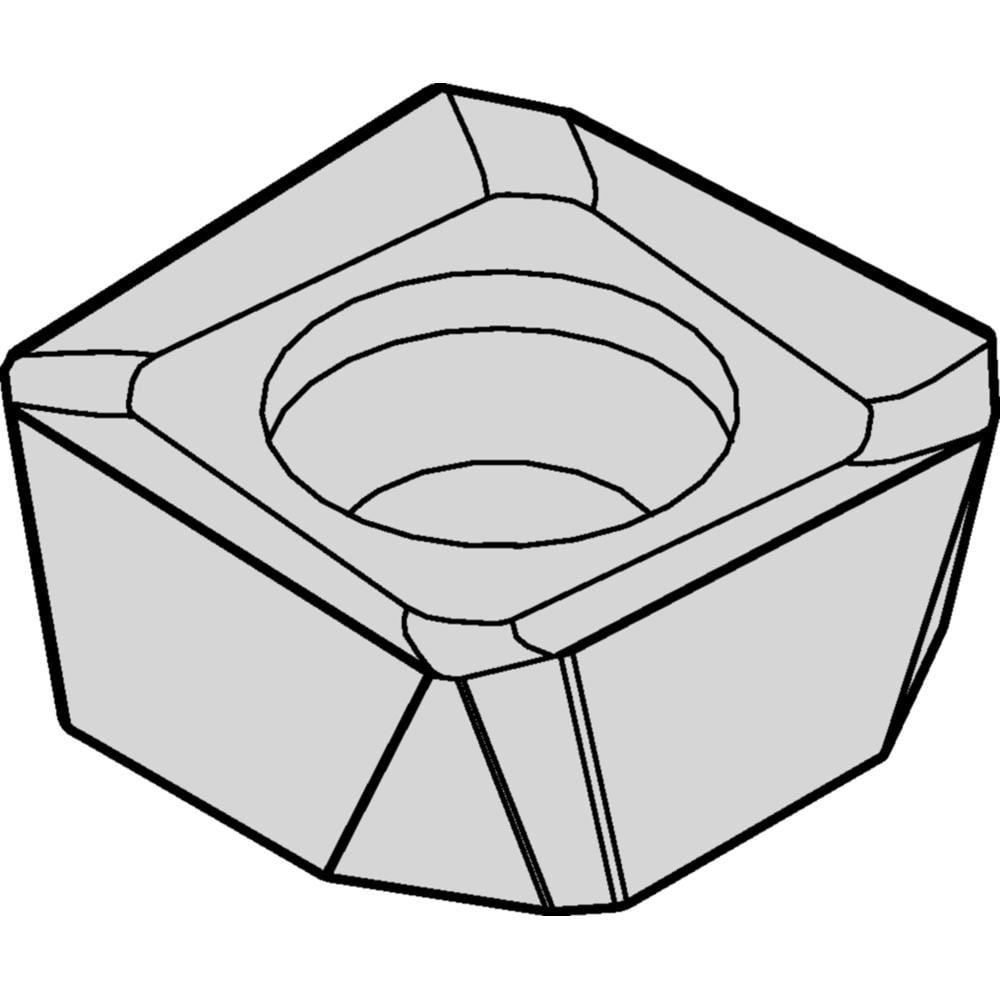

Brand: Widia / Part #: 2022375
Item #: 95195632
Brand: Widia
Model #: 2022375
Product Specifications
| Insert Style | SNKT |
| Insert Size Code | 1205 |
| Insert Size | 43 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | THM |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | M660 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2183 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Negative |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SNKT435AZR21 |
| Iso Code | SNKT1205AZR21 |
| Manufacturers Catalog Number | SNKT435AZR21 |
| Cutter Series Compatibility | M660 SN1205 IN |
| Chip Breaker | 21 |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
