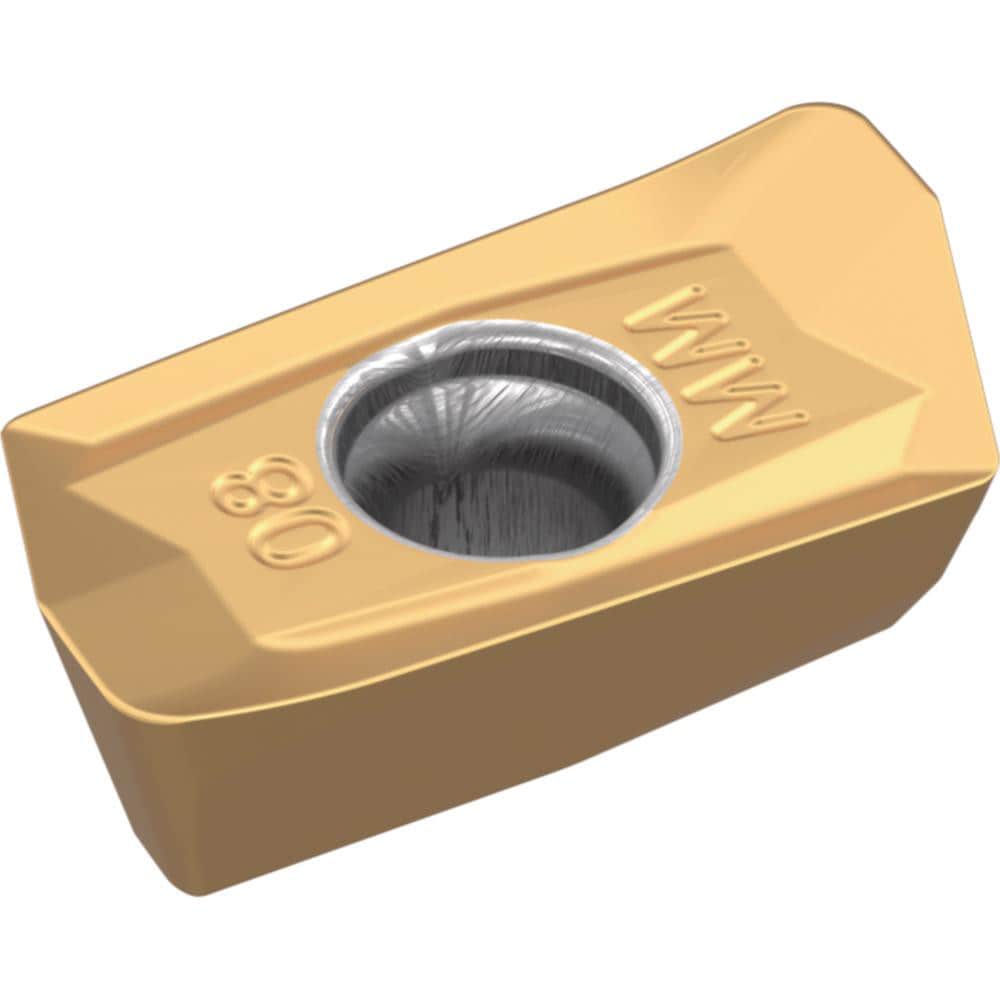

Brand: Widia / Part #: 5415254
Item #: 93342905
Brand: Widia
Model #: 5415254
Product Specifications
| Insert Style | XDPT |
| Insert Size Code | 1104 |
| Insert Size | 11 |
| Insert Material | Carbide |
| Manufacturer Grade | WP25PM |
| Length (Inch) | 17/32 |
| Inscribed Circle (Decimal Inch) | 0.2740 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Corner Radius (Inch) | 1/16 |
| Insert Hand | Right Hand |
| Relief Angle | 15.000 |
| Series | VSM11 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.0000 |
| Hole Diameter (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (Decimal Inch) | 0.4630 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | XDPT1104SRMM |
| Iso Code | XDPT110416PDSRMM |
| Manufacturers Catalog Number | XDPT1104SRMM |
| Cutter Series Compatibility | VSM11 XDPT |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | Universal |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlTiN |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.2740 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1630 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5320 |
