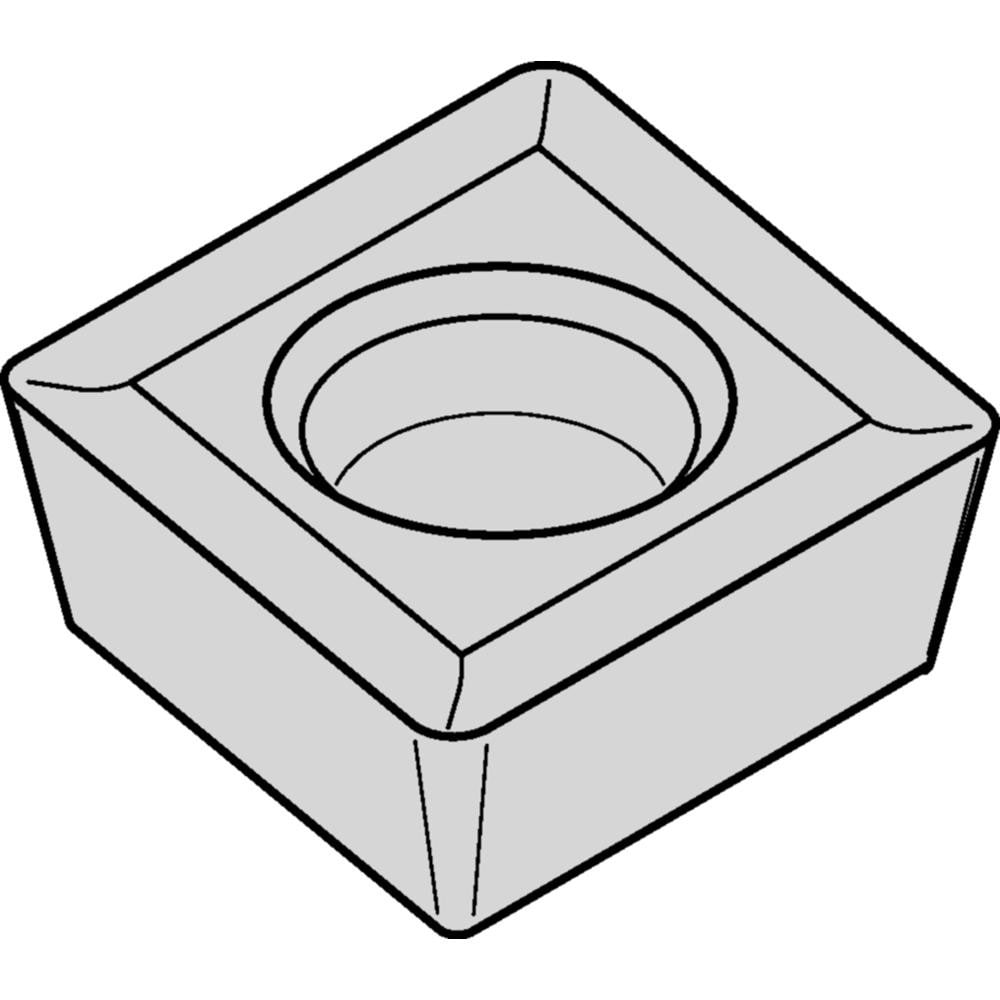

Brand: Widia / Part #: 5903680
Item #: 94038866
Brand: Widia
Model #: 5903680
Product Specifications
| Insert Style | CPNT |
| Insert Size Code | 0602 |
| Insert Size | 21 |
| Insert Material | Carbide |
| Manufacturer Grade | WK15CM |
| Thickness (Inch) | 3/32 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Neutral |
| Relief Angle | 11.000 |
| Series | M16 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2539 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Diamond |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | CPNT2151T |
| Iso Code | CPNT060204T |
| Manufacturers Catalog Number | CPNT2151T |
| Cutter Series Compatibility | M16 CP0602 IN |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Diamond |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.2539 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2539 |
