Brand: Widia / Part #: 2028568
Item #: 95159802
Brand: Widia
Model #: 2028568
Product Specifications
| Insert Style | SPUN |
| Insert Shape Code | S |
| Insert Size Code | 633 |

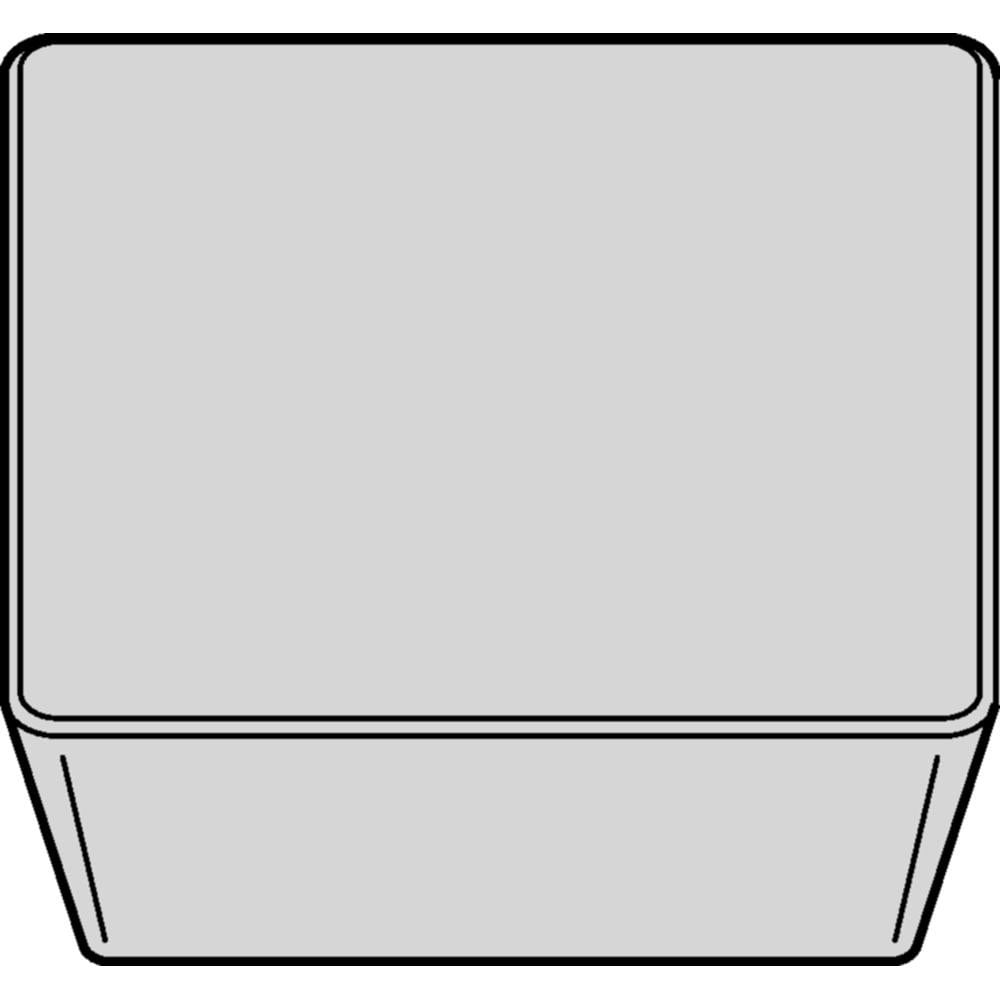

| Insert Shape | Square |
| Coating/Finish | Uncoated |
| Manufacturer Grade | THM |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Clearance Code | P |
| Tolerance Code | U |
| Included Angle | 90.00 |
| Relief Angle | 11.000 |
| Series | SPUN |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.7500 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Iso Code | SPUN190412 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | SPUN |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
