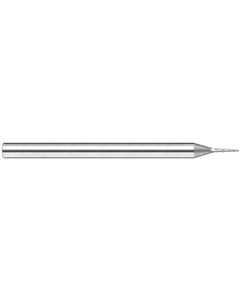

1/64″ Dia. × 5/64″ LOC × 1/8″ Shank Size × 1-1/2″ OAL, 3 Flute, 20 Degrees Body Half Taper Angle, Carbide, Uncoated, Ball, Tapered End Mill
Item #: GE90802115
Brand: Harvey Tool
Model #: 802115
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/64″ |
| Coating | Uncoated |
| Depth of Cut Maximum (APMX) | 5/64″ |
| Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 |
| End Shape | Ball |
| Corner Radius (RE) | 0.0075″ |
| Shank Type | Round |
| Overall Length (OAL) | 1-1/2″ |
| Length Group | 5D |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Measurement Type | Inch |
| Body Half Taper Angle (BHTA) | 20 Degrees |
| Series/List # | Miniature End Mills |
| Point Angle (SIG) | 40 Degrees |
| Body Material | Carbide |
