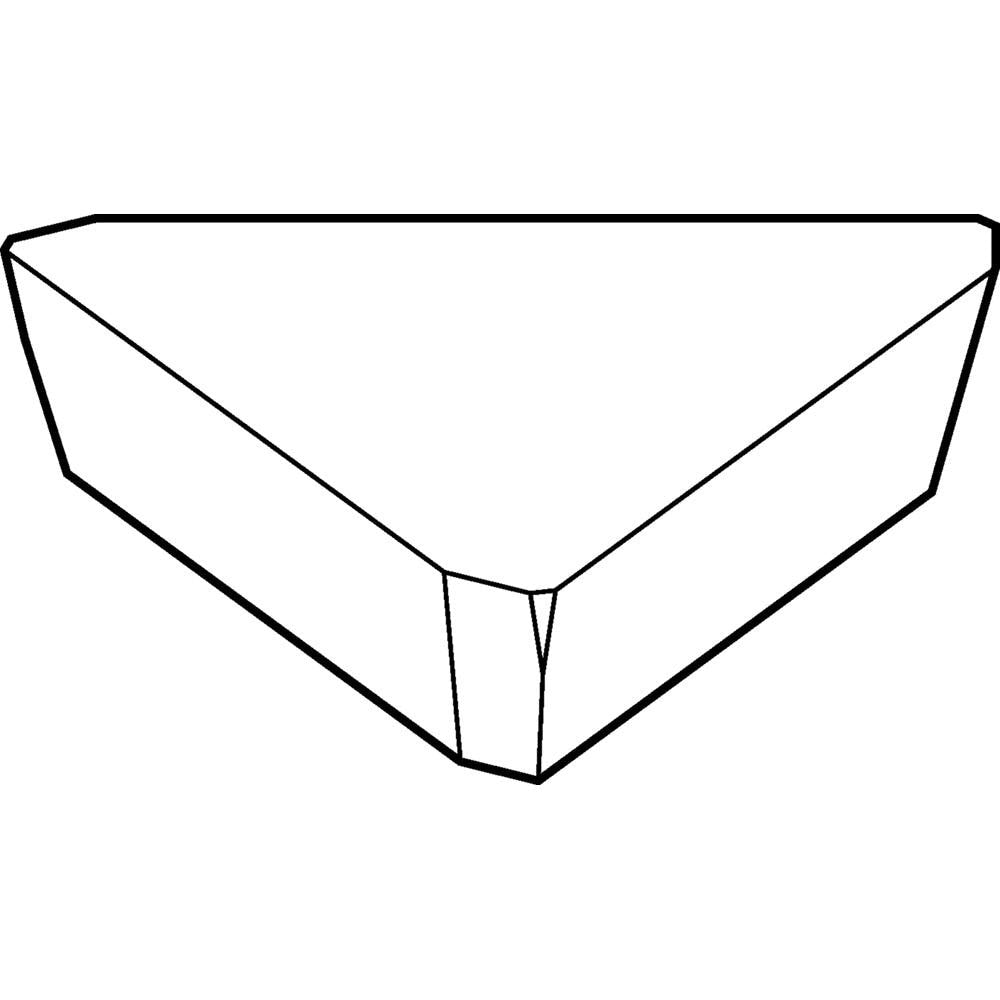

Brand: Widia / Part #: 2028791
Item #: 94017498
Brand: Widia
Model #: 2028791
Product Specifications
| Insert Style | TPKN |
| Insert Size Code | 1603 |
| Insert Size | 16 |
| Insert Material | Cermet |
| Manufacturer Grade | TTI25 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Right Hand |
| Relief Angle | 11.000 |
| Series | TPKN |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6477 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | TPKN1603PDR |
| Iso Code | TPKN1603PDR |
| Manufacturers Catalog Number | TPKN1603PDR |
| Cutter Series Compatibility | M40 |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Triangle |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.6477 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6477 |
