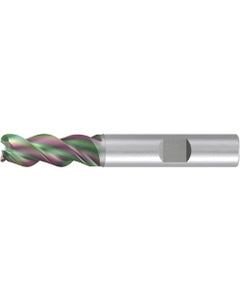

Corner Radius End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 3 FL ; Carbide ; GLT ; Series 2547K
Item #: ER452547K016015
Brand: EMUGE-FRANKEN
Model #: 2547K.016015
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Soft Materials Finishing | |
| Depth of Cut Maximum (APMX) | 32 mm |
| Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 92 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.6299″ |
| Coating | GLT |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Series/List # | 2547K |
