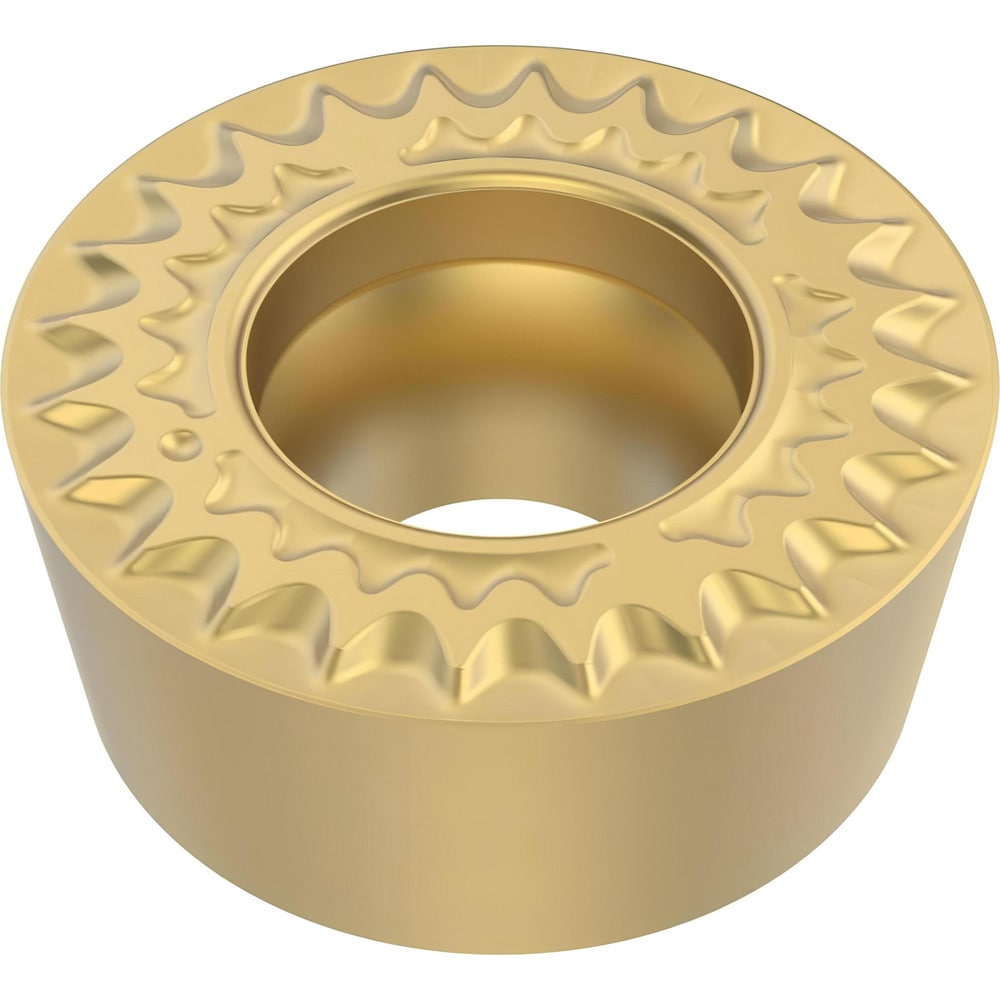

Brand: Seco / Part #: 10083788
Item #: 94202264
Brand: Seco
Model #: 10083788
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 1204 |
| Insert Shape | Round |
| Coating/Finish | TiN; TiAlN |
| Manufacturer Grade | CP500 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | C |
| Tolerance Code | M |
| Relief Angle | 7.000 |
| Series | RCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4720 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | RCMT1204M0-MF2 |
| Iso Code | RCMT1204M0-MF2 |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | MF2 |
| Style | RCMT |
| Width (Decimal Inch - 4 Decimals) | 0.4720 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Yes |
