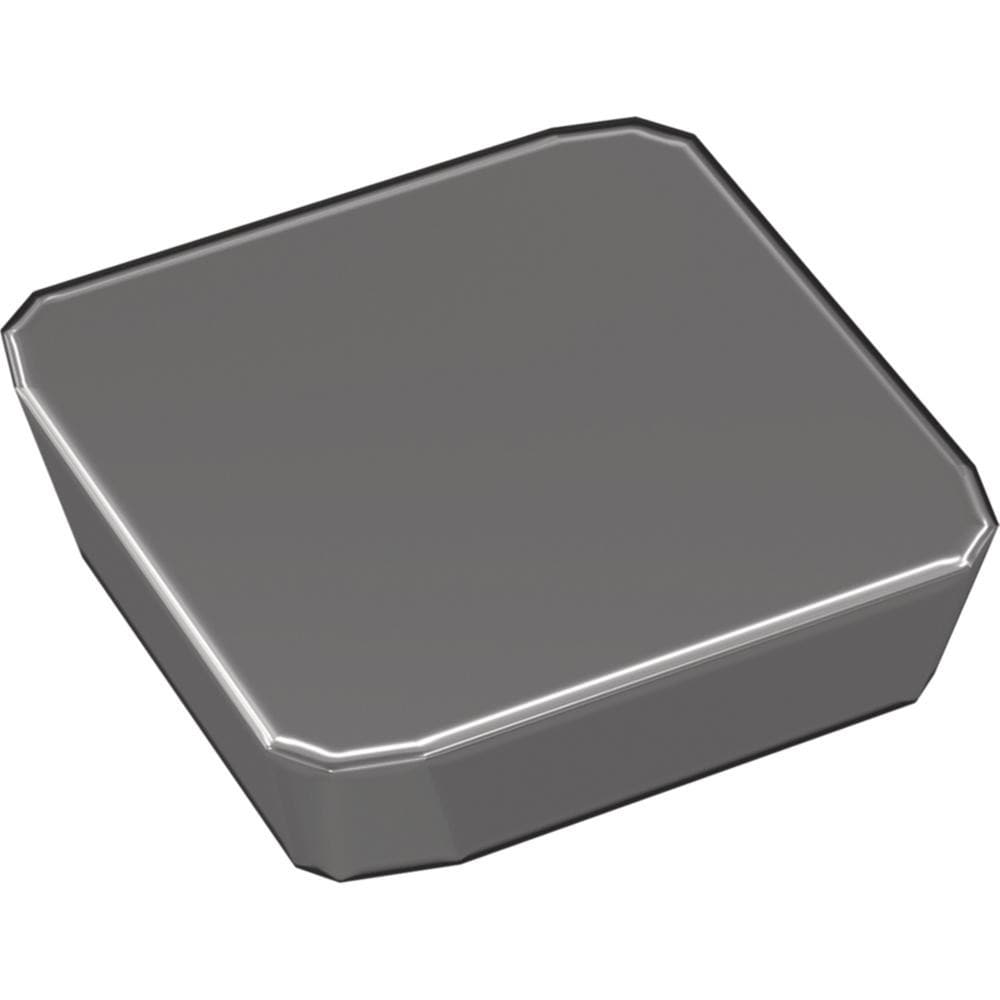

Brand: Widia / Part #: 2557226
Item #: 94054798
Brand: Widia
Model #: 2557226
Product Specifications
| Insert Style | SPKN |
| Insert Size Code | 1203 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | WU20PM |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Left Hand |
| Relief Angle | 11.000 |
| Series | SPKN |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | SPKN1203EDL |
| Iso Code | SPKN1203EDL |
| Manufacturers Catalog Number | SPKN1203EDL |
| Chip Breaker | None |
| Cutting Direction | Left Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Square |
| Insert Holding Method | Clamp |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
