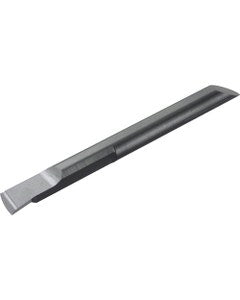

EZBR 035030ST015H PR1725 Grade PVD Carbide, Micro Boring Bar
Item #: KY90TLM40304
Brand: Kyocera Precision Tools
Model #: TLM40304
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Usable Length (LU) | 13 mm |
| Minimum Bore Diameter (DMIN) | 3.5 mm |
| Shank Height (H) | 2.8 mm |
| Functional Length (LF) | 39 mm |
| Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
| Style | EZB-ST |
| Coating | MEGACOAT NANO PLUS |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Grade | PR1725 |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Application | | Micro Boring | |
| Series/List # | EZB |
| Applicable Material | | Steel | Stainless Steel | |
| Measurement Type | Metric |
| Corner Radius (RE) | 0.006″ |
| Overall Length (OAL) | 39 mm |
| Functional Width (WF) | 1.44 mm |
