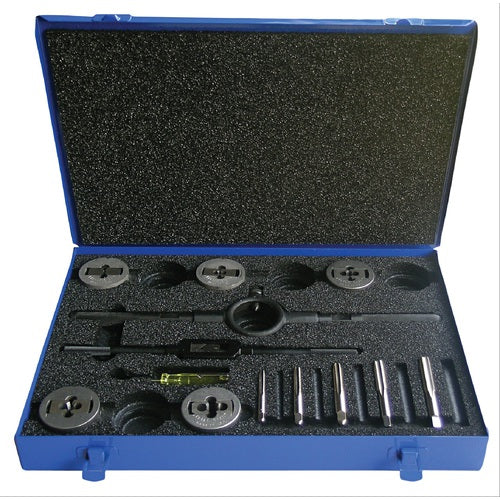

5510 NC PLG TAP/QS DIE 13PC SET
Item #: CL71C00610
Brand: Cle-Line
Model #: C00610
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ | 5/16″ | 3/8″ | 7/16″ | 1/2″ |
| Coating | Bright |
| Thread Standard | NC |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | 0.318″ | 0.381″ | 0.323″ | 0.367″ |
| Threads per Inch (TPI) | 20 | 18 | 16 | 14 | 13 |
| Cutting Edge Material | HSS & Carbon Steel |
| Thread Tolerance Class (TCTR) | H3 |
| Measurement Type | Inch |
| Tool Type | Tap & Die Set |
| Series/List # | 55 |
| Cutting Direction (HAND) | Right Hand |
