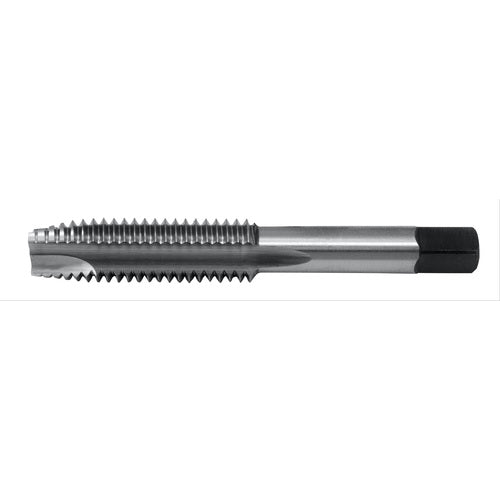

#10-32NF H2 2FL PLG SPPT
Item #: CL71C00788
Brand: Cle-Line
Model #: C00788
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Tool Type | Machine Tap |
| Thread Size | #10 - 32 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Diameter Size (TDZ) | #10 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Threads per Inch (TPI) | 32 |
| Thread Cutting Part Length (THL) | 7/8″ |
| Thread Tolerance Class (TCTR) | H2 |
| Flute Type | Straight |
| Usable Length (LU) | 1/2″ |
| End Shape | Square |
| Overall Length (OAL) | 2-3/8″ |
| Shank Type | Round w/ Drive Square |
| Chamfer | Plug |
| Cutting Direction (HAND) | Right Hand |
| Coating | Bright |
| Length Group | 2D |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Series/List # | 411 |
