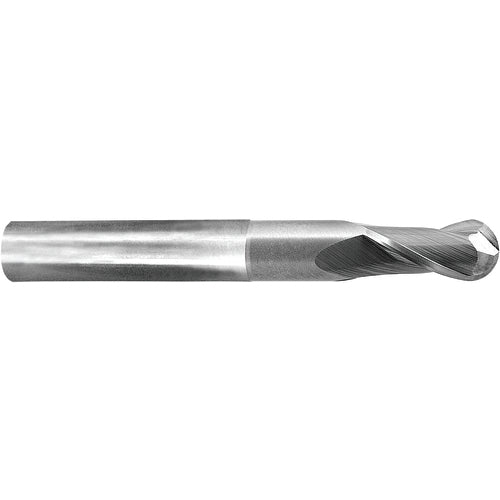

5/16″ Dia. × 5/16″ Shank × 2-5/16″ DOC × 4 OAL, Carbide 2 Flute, Ballnose End Mill
Item #: CR1016754
Brand: Melin Tool Co
Model #: 16754
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| End Shape | Ball |
| Depth of Cut Maximum (APMX) | 2-5/16″ |
| Style | General Purpose |
| Overall Length (OAL) | 4 |
| Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide |
| Series/List # | AMGN |
| Flute Count (NOF) | 2 |
