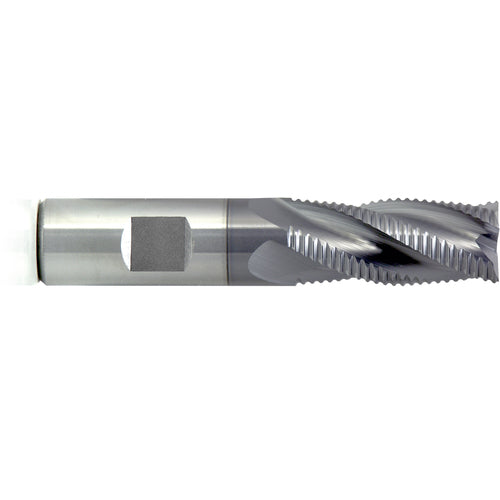

45688 5/8X5/8X2-1/8X4-1/4
Item #: CR1045688
Brand: Melin Tool Co
Model #: 45688
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Corner Chamfer Width (CHW) | 0.018″ |
| Depth of Cut Maximum (APMX) | 2-1/8″ |
| Tool Type | General Purpose |
| Overall Length (OAL) | 4-1/4″ |
| Decimal Equivalent | 0.625″ |
| Cutting Edge Material | HSS M42 |
| Series/List # | CFP |
| Coating | TiCN |
