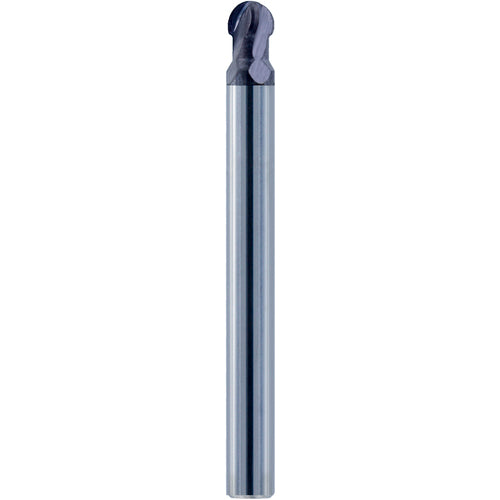

1/4″ Dia. × 1/4″ Shank × 0.938″ DOC × 2-1/2 OAL, Carbide nACo, 4 Flute, Ballnose End Mill
Item #: CR10H7169
Brand: Melin Tool Co
Model #: H7169
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 3/16″ |
| Depth of Cut Maximum (APMX) | 0.938″ |
| End Shape | Ball 220° |
| Overall Length (OAL) | 2-1/2 |
| Style | High Performance |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ |
| Coating | nACo |
| Series/List # | VBMG4 |
