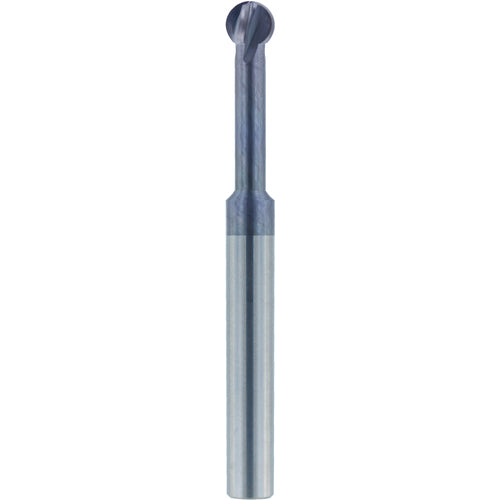

1/8″ Dia. × 1/8″ Shank × 0.857″ DOC × 2 OAL, Carbide nACo, 4 Flute, Ballnose End Mill
Item #: CR10H7334
Brand: Melin Tool Co
Model #: H7334
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 0.107″ |
| Depth of Cut Maximum (APMX) | 0.857″ |
| End Shape | Ball 270° |
| Overall Length (OAL) | 2 |
| Decimal Equivalent | 0.125″ |
| Cutting Edge Material | Carbide |
| Series/List # | VBMG4 |
| Coating | nACo |
