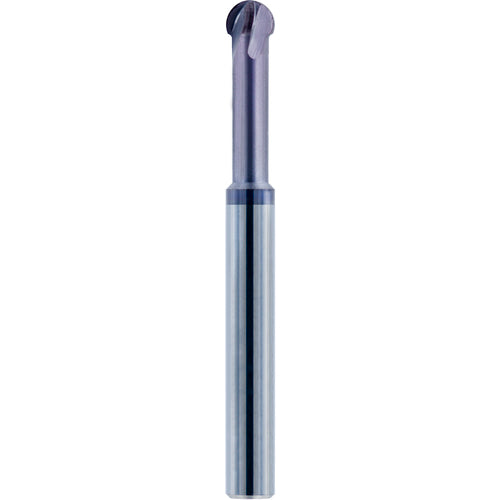

5/16″ Dia. × 5/16″ Shank × 0.96″ DOC × 2-1/2 OAL, Carbide nACo, 4 Flute, Ballnose End Mill
Item #: CR10H7362
Brand: Melin Tool Co
Model #: H7362
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Usable Length (LU) | 0.21″ |
| Depth of Cut Maximum (APMX) | 0.96″ |
| End Shape | Ball 220° |
| Overall Length (OAL) | 2-1/2 |
| Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide |
| Series/List # | VBMG4 |
| Coating | nACo |
